Filter

Product Introduction

1.Reducing the conducted emission from inverter to power network.
2.Improve the reliability of the whole system
3.Improve the relability of the whole system.
4.less than 100A filters, using solid safety connector, more than 1 50A filters, using copper bar.
5.Low leakage current,Lack of a phase, The maximum leakage current is 15.13mA (except P type).

Technical Data

1.Rated voltage: 1140/660 VAC
2.Rated frequency : 50Hz
3.Rated current: 20A~900A
4.High potential test voltage : P-E 4950VDC/60sec P-P 4950VDC/60sec
5.Temperature range: -25C ~100C (25/100/21)
6.Design correspondingto : IEC/EN 60939
7.Typical work frequency : 1 50kHz- 30MHz

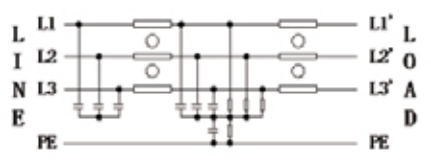

Typical electrical schematic of input filter

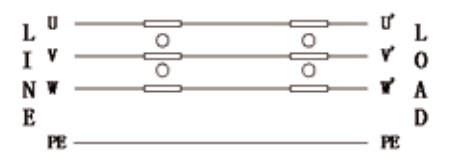

Typical electrical schematic of output filter

Typical Applications

The series filter is mainly used in 1140V inverter, and other 1140V system. The P series is used toconducted emission test, can not be used in the mine, otherwise may cause the electric leakageprotector to trip.

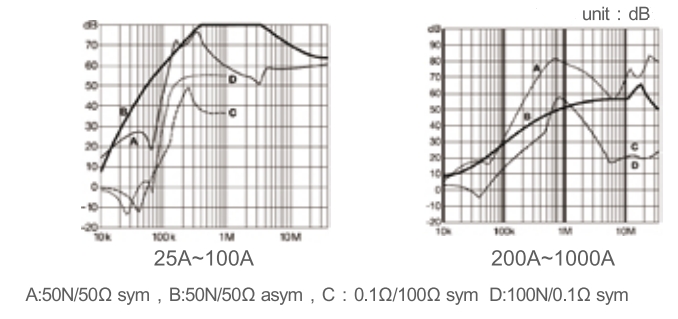

Input Filter Attenuation

Filter Selection Table

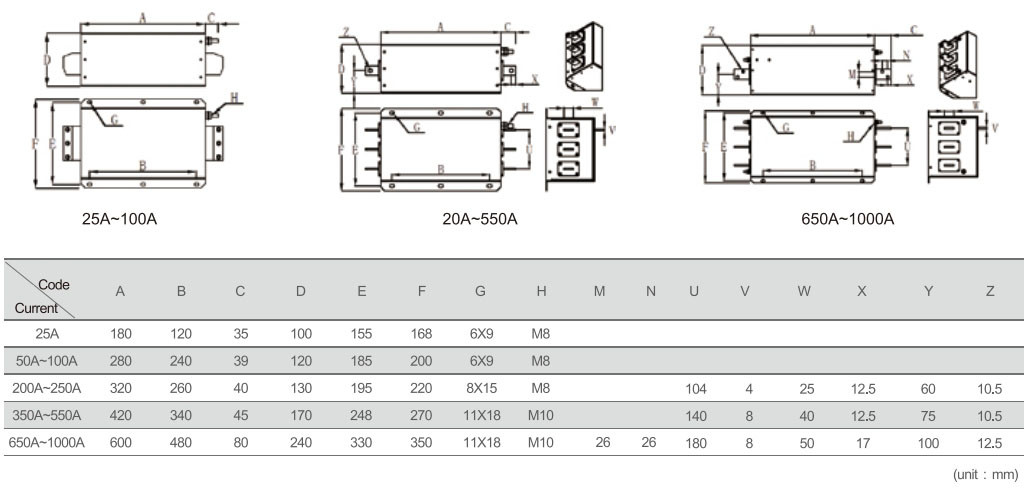

Product Size

Filter Input/output Connector Cross Sections
