Filter
Professional soft starter and frequency inverter supplier and manufacturer in China
Product Introduction
Reducing the conducted emission from inverter to power network.
Low cost design, reduce the cost of users
Improve the relibility of the whole system
Suitable for power electronic equipment such as inverter, converter, servo and so on.
Technical Data
Rated voltage: 440/250 VAC
Operating frequency: 50Hz
Rated current: 5A~1000A
High potential test voltage : P-E 2100VDC/2sec P-P 2100VDC/2sec
Temperature range: -25 C-100C (25/100/21)
T emperature range: IEC/EN 60939
Typical work frequency : 150kHz- 30MHz
Filter Selection Table
| Drive power rating | Rated voitage | Rated current | Input filter | Output filter | Connector type |
|---|---|---|---|---|---|
| 1.5KW | 440VAC | 5A | SKI24025-5 | SKO24025-5 | barrier terminal |
| 3.7KW | 440VAC | 10A | SKI24025-10 | SKO24026-10 | barrier terminal |
| 7.5KW | 440VAC | 20A | SKI24025-20 | SKO24027-20 | barrier terminal |
| 11KW | 440VAC | 30A | SKI24025-30 | SKO24028-30 | barrier terminal |
| 18.5KW | 440VAC | 40A | SKI24025-40 | SKO24029-40 | barrier terminal |
| 22KW | 440VAC | 50A | SKI24025-50 | SKO24030-50 | barrier terminal |
| 30KW | 440VAC | 65A | SKI24025-65 | SKO24031-65 | barrier terminal |
| 37KW | 440VAC | 80A | SKI24025-80 | SKO24032-80 | barrier terminal |
| 45KW | 440VAC | 100A | SKI24025-100 | SKO24033-100 | barrier terminal |
| 55KW | 440VAC | 120A | SKI24025-120 | SKO24034-120 | barrier terminal |
| 75KW | 440VAC | 150A | SKI24025-150 | SKO24035-150 | screw |
| 90KW | 440VAC | 200A | SKI24025-200 | SKO24036-200 | screw |
| 110KW | 440VAC | 250A | SKI24025-250 | SKO24037-250 | copper bar |
| 160KW | 440VAC | 320A | SKI24025-320 | SKO24038-320 | copper bar |
| 200KW | 440VAC | 400A | SKI24025-400 | SKO24039-400 | copper bar |
| 315KW | 440VAC | 600A | SKI24025-600 | SKO24040-600 | copper bar |
| 400KW | 440VAC | 800A | SKI24025-800 | SKO24041-800 | copper bar |
| 500KW | 440VAC | 1000A | SKI24025-1000 | SKO24042-1000 | copper bar |

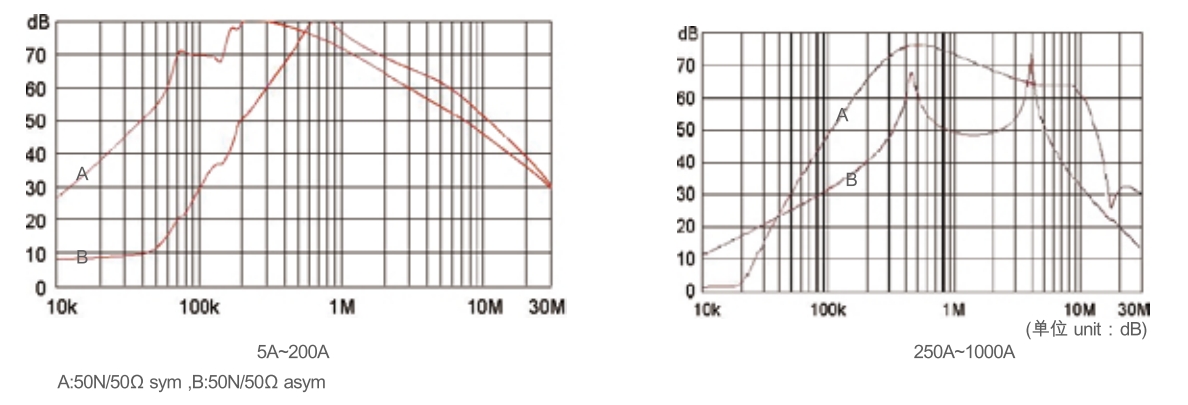

input filter attenuation

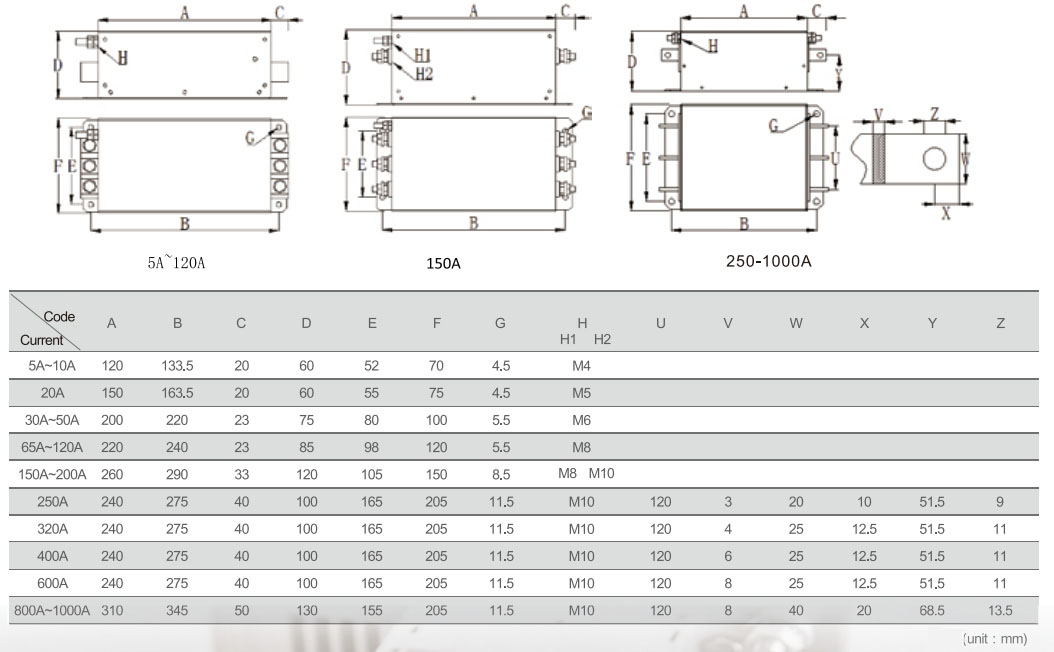

Product Size
|
|
NO. | Title | Download Link |
|---|---|---|---|
| 1. | Filter | Download |
