Product Introduction
1.Reducing the conducted emission from inverter to power network.
2. Exception attenuation performance from 1 50kHz- 30MHz
3. Compact, space-saving design, optimized forindustrial machinery
4.Increases also the immunity if operated directlyon the mains input
5.N99 for the use of copper bar, other terminals
Technical Data
1.Rated voltage: 440/250 VAC
2.Operating frequency: 50Hz
3.Rated current: 10A-600A ( @50C )
4.High potential test voltage : P-E 2100VDC/2sec P-P 2100VDC/2sec
5.Temperature range: -25C-100C (25/100/21)
6.Design correspondingto : IEC/EN 60939、UL1283
7.Typical work frequency : 1 50kHz~ 30MHz
Typical Applications
Mainly industrial equipment, machinery, machinetools and diverse process auto-mation systems with three-phase and neutral electricity supply. Due to the outstanding attenuation performance,The series is also the first choice for noisy power supplies, renewable energy applications, high power office equipment and further three-phase and neutral devices. Because of the relatively low leakage current,The series may even be used for some medical devices.

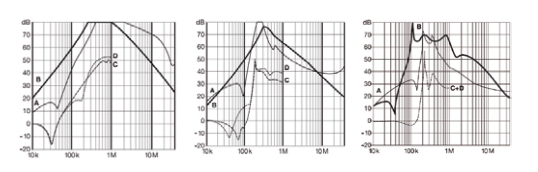

input filter attenuation
Filter Selection Table
| Filter type | Rated current @40°c[A] | Leakage current @230VAC/50Hz[mA] | Power loss @25°C/50Hz[W] | Connector type |
|---|---|---|---|---|
| SKI4NC8N06 | 8 | <1 | 3.2 | solid safety connector |
| SKI4NC16N06 | 16 | <1 | 6.5 | sdlid safety connector |
| SKI4NC25N10 | 25 | <1 | 11.8 | solid safety connector |
| SKI4NC36N10 | 36 | <1 | 15.3 | sdlid safety connector |
| SKI4NC50N16 | 50 | <1 | 17.4 | solid safety connector |
| SKI4NC65N16 | 65 | <1 | 18.9 | solid safety connector |
| SKI4NC100N35 | 100 | <1 | 23.6 | solid safety connector |
| SKI4NC130N50 | 130 | <1 | 28.5 | sdlid safety connector |
| SKI4NC160N95 | 160 | <1 | 31 | solid safety connector |
| SKI4NC200N95 | 200 | <1 | 47.4 | sdlid safety connector |
| SKI4NC300N99 | 300 | <1 | 20.3 | copper bar |
| SKI4NC400N99 | 400 | <1 | 36 | copper bar |
| SKI4NC600N99 | 600 | <1 | 64.8 | copper bar |
Product Size

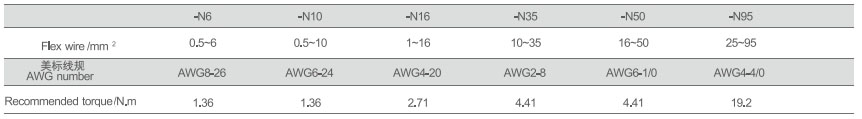

Filter Input/output Connector Cross Sections
|
|
NO. | Title | Download Link |
|---|---|---|---|
| 1. | Filter | Download |
