Filter
Professional soft starter and frequency inverter supplier and manufacturer in China
Product Introduction
1.General purpose EMI filter with high attenuation performance
2.High common-modeand differential-mode attenuation
3.Widely used in switching power, UPS, inverter, etc.
4.Exceed 50A must ensure that the ground is good, otherwise there is a risk of electric shock
5.Medical type filter suffx for A
Technical Data
Rated voltage: 250 VAC
Operating frequency: 0~60Hz
Rated current: 3A~200A
High potential test voltage : OP/N-E 2000VAC/2sec 0P-N 1100VDC/2sec
Temperature range: -25C~85C (25/85/21 )
Design corresponding to: IEC/EN 60939
Typical work frequency : 150kHz- 30MHz
Typical Applications
Electrical and electronic equipment
Consumer goods
Household equipment
Electronic data processing equipment
Office automation and datacom equipment
Various noisy applications requiring high filter performance

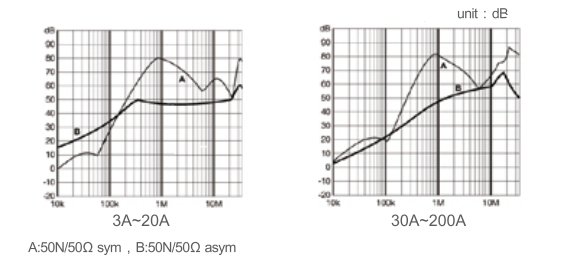

Input Filter Attenuation
Filter Selection Table
| Universal fiter | Medical fter | Rated current @40C [A] | Universal flter | Medical fiter | Power loss @25"C/50Hz [W] |
|---|---|---|---|---|---|
| RFD2B3N01 | RFD2B3N01A | 3 | 0.87 | 0.074 | 2.3 |
| RFD2B6N01 | RFD2B6N01A | 6 | 0.87 | 0.074 | 32 |
| RFD2B10N01 | RFD2B10N01A | 10 | 0.87 | 0.074 | 38 |
| RFD2B16N01 | RFD2B16N01A | 16 | 0.87 | 0.074 | 4.7 |
| RFD2B20N01 | RFD2B20N01A | 20 | 0.87 | 0.074 | 5.6 |
| RFD2B30N05 | RFD2B30N05A | 30 | 0.87 | 0.074 | 8.5 |
| RFD2B50N05 | RFD2B50N05A | 50 | 1.75 | 0.074 | 13.3 |
| RFD2B100N05 | RFD2B100N05A | 100 | 1.75 | 0.074 | 30.2 |
| RFD2B200N05 | RFD2B200N05A | 200 | 3.5 | 0.074 | 46.9 |

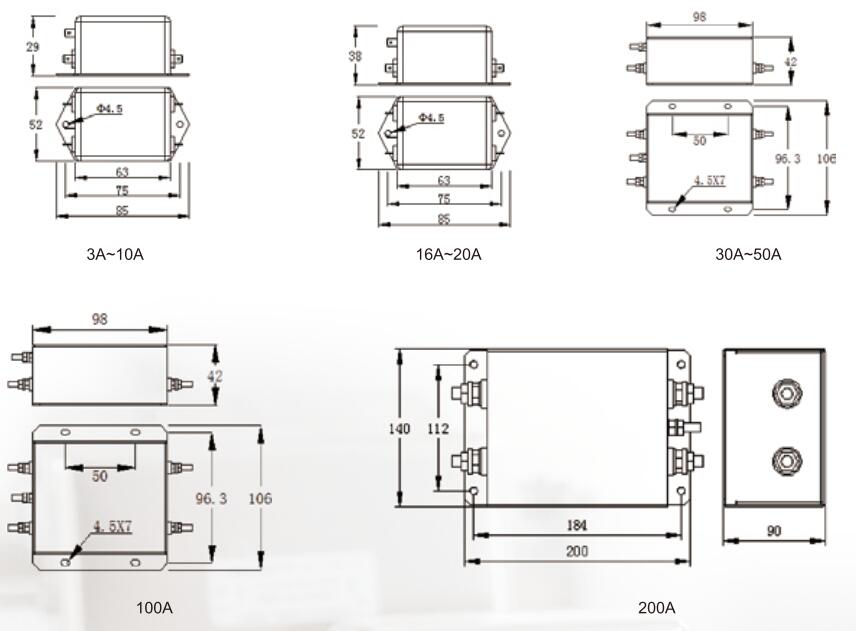

Product Size
|
|
NO. | Title | Download Link |
|---|---|---|---|
| 1. | Filter | Download |
