AC Input Reactor

AC Input Reactor

Contact Information
Share
Parameter

Product Introduction

Input reactors orrer overload to line power supply and reduce harmonic distortion arising from frequency inverters,also improve the input supply,reduce ultraharmonic and suppress the surge caused by frequency inverters to the power supply units.

Product Application

Particularly apply to the following cases:

1. Multiple frequency inverters in close parallel connection
2.Other devices produce interference to line power supply.(disturbance,, over voltage
3.Nonbalance among phases of line power supply.( 1.8% over than of the rated voltage
4.Massive frequency inverters installed on the same line
5.Reduce cos ∮ and correct the overload of capacitor,in case the power factor correction devices are installed in system

Technical Specifications

Operation Environment:-10~+45 ℃,rated value won′t lower,when higher than 55℃ , and every 1℃ the current will step down 2%Under seal level 2000m
Running ambient temperature -25 ℃ ~ +45 ℃ comparative moisture not over 90%.
No hazardous gas,no inflammables and explosives
With well-ventilated condition,ventilation devices shall be mounted if installatioh in panels

Applicable Standards

IEC289: 1987 Reactor
GB10229-88 Reactor (eqvIEC289: 1987)
JB9644-1999 Reactors used for semiconductor electrical driving

Product Size

380V AC Input Reactor

Reactor Type Picture NO. Power(kw) Rated Current(A) Inductance Value(mH) Voitage Drop Insulation rank Dimension(±5mm)
L D W W1 H A x B
ASK-0005-2M80-0.4SC Picture A 1.5 5 2.8 2% F、H 115 90 95 68 135 6X11
ASK-0007-2M00-0.4SC 2.2 7 2 2% F、H 115 90 95 68 135 6X11
ASK-0010-1M40-0.4SC 3.7 10 1.4 2% F、H 115 90 95 68 135 6X11
ASK-0015-0M94-0.4SC 5.5 15 0.94 2% F、H 115 90 95 68 135 6X11
ASK-0020-0M70-0.4SC 7.5 20 0.7 2% F、H 155 95 98 61 170 6x15
ASK-0030-0M47-0.4SC Picture B 11 30 0.47 2% F、H 155 95 80 63 135 6x15
ASK-0040-0M36-0.4SC 15 40 0.36 2% F、H 155 95 130 76 135 6x15
ASK-0050-0M28-0.4SC 18.5 50 0.28 2% F、H 155 95 140 76 135 6x15
ASK-0060-0M24-0.4SC 22 60 0.24 2% F、H 195 120 40 72 165 8.5x20
ASK-0080-0M18-0.4SC 30 80 0.18 2% F、H 195 120 150 92 165 8.5x20
ASK-0090-0M16-0.4SC 37 90 0.156 2% F、H 195 120 150 32 165 8.5x20
ASK-0120-0M12-0.4SA Picture C 45 120 0.117 2% F、H 230 150 150 83 220 11x18
ASK-0150-094U-04SA 55 150 0.094 2% F、H 230 150 170 88 220 11x18
ASK-0200-070U-0.4SA 75 200 0.07 2% F、H 250 182 170 98 230 11x18
ASK-0250-056U-04SA 110 250 0.056 2% F、H 250 182 175 98 230 11x18
ASK-0290-048U-04SA 132 290 0.048 2% F、H 290 214 175 102 250 11x18
ASK-0330-042U-04SA 160 330 0.042 2% F、H 290 214 200 102 250 11x18
ASK-0390-036U-0.4SA 185 390 0.036 2% F、H 290 214 200 107 250 11x18
ASK-0490-028U-04SA 220 490 0.028 2% F、H 320 243 205 125 320 12x 20
ASK-0600-024U-04SA 280 600 0.024 2% F、H 320 243 230 140 320 12x 20
ASK-0660-022U-0.4SA 300 660 0.022 2% F、H 320 243 250 140 320 12x20
ASK-0800-17U5-04SA Picture D 380 800 0.0175 2% F、H 365 260 250 135 390 15x25
ASK1000-014U-0.4SA 450 1000 0.014 2% F、H 365 260 280 135 390 15*25
ASK-1200-11U7-0.4SA 550 1200 0.0117 2% F、H 395 275 340 160 390 15x25
ASK-1600-08U6-04SA 630 1600 0.0086 2% F、H 395 275 340 160 435 15x25

690V AC Output Reactor

Reactor Type Picture NO. Power(kw) Rated Current(A) Inductance Value(mH) Voitage Drop Insulation rank Dimension(±5mm)
L W H D W1 A x B

ASK-0005--5M60-0.7SC

Picture A 3.7 5 5.6 2% F、H 155 80 180 95 61 6x15

ASK-0007-4M00-0.7SC

5.5 7 4 2% F、H 155 80 180 95 61 6x15

ASK-0010-2M80-0.7SC

7.5 10 2.8 2% F、H 155 80 200 95 63 6x15

ASK-0015-1M87-0.7SC

11 15 1.87 2% F、H 115 80 200 95 63 6x15

ASK-0020-1M40-0.7SC

Picture B 15/18.5 20 1.4 2% F、H 155 130 135 95 76 6x15

ASK-0030-0M93-0.7SC

22 30 0.93 2% F、H 195 130 165 120 72 8.5x20

ASK-0040-0M70-0.7SC

30 40 0.7 2% F、H 195 130 165 120 72 8.5x20

ASK-0050-0M56-0.7SA

37/45 50 0.56 2% F、H 195 150 165 120 92 8.5x20

ASK-0060-0M47-0.7SA

55 60 0.47 2% F、H 195 150 165 120 92 8.5x20

ASK-0080-0M35-0.7SA

Picture C 75 80 0.35 2% F、H 195 170 165 120 112 8.5x20

ASK-0120-0M23-0.7SA

110 120 0.23 2% F、H 250 190 230 182 113 11x18

ASK-0150-0M19-0.7SA

75 200 0.07 2% F、H 290 210 250 214 107 11x18

ASK-0200-0M14-0.7SA

110 250 0.056 2% F、H 290 220 250 214 117 11x18

ASK-0250-0M11-0.7SA

132 290 0.048 2% F、H 320 240 280 243 130 11x18

ASK-0290-096U-0.7SA

160 330 0.042 2% F、H 320 250 280 243 140 11x18

ASK-0330-085U-0.7SA

185 390 0.036 2% F、H 320 250 280 243 150 12x20

ASK-0390-072U-0.7SA

220 490 0.028 2% F、H 320 260 320 243 150 12x20

ASK-0490-057U-0.7SA

280 600 0.024 2% F、H 365 285 340 260 155 15x25

ASK-0600-047U-0.7SA

Picture D 380 800 0.0175 2% F、H 365 320 340 260 185 15x25

ASK-0660-042U-0.7SA

450 1000 0.014 2% F、H 365 320 340 260 185 15x25

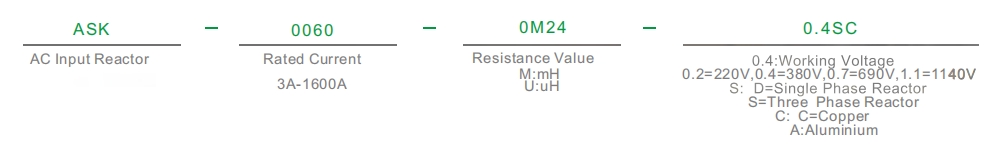

Product Identification Code


NO. Title Download Link
1. Reacter         Download
