EM2 Series

The EM2 series three-phase asynchronous motor is a newly developed ultra efficient and energy-saving motor designed and manufactured by our company. The energy efficiency level complies with the third level efficiency regulation in the "Motor Energy Conservation Evaluation Value" in GB 18613- "Energy Efficiency Limits and Energy Efficiency Levels for Small and Medium sized Three Phase Asynchronous Motors".

Product Features

1) The novel style of the junction box, base, end cover, and fan cover is conducive tonoise reduction and ventilation

2) The motor adopts a thermal rating of 155 (F) insulation system to extend its service life.

3) The working system is S1, the cooling method IC411, and the shell protection levelIP55 orIP56.

4)lt bears excellent starting characteristics

5) lt features low temperature rise, high reliability, high efficiency, strong energyconservation, good safety, strong environmental protection, and nice appearance

Working Conditions

a) Temperature: The ambient air temperature varies with the season, but the highesttemperature is+40 C, and the lowest temperature of the ambient air is -15 C.

b)Altitude:not exceeding 1000mNote: When the ambient air temperature and altitude are different from the aboveregulations, the provisions of lEC60034-1 shall apply.

c) Humidity: The average highest relative humidity in the wettest month is 90%and the average lowest temperature in that month is not higher than 25 C

d) Rated frequency:50Hz.

e) Working system: S1

f) Rated voltage: 380VNote: When there are special requirements for frequency, voltage, ambientair temperature, altitude, etc., please provide them when placing an order.

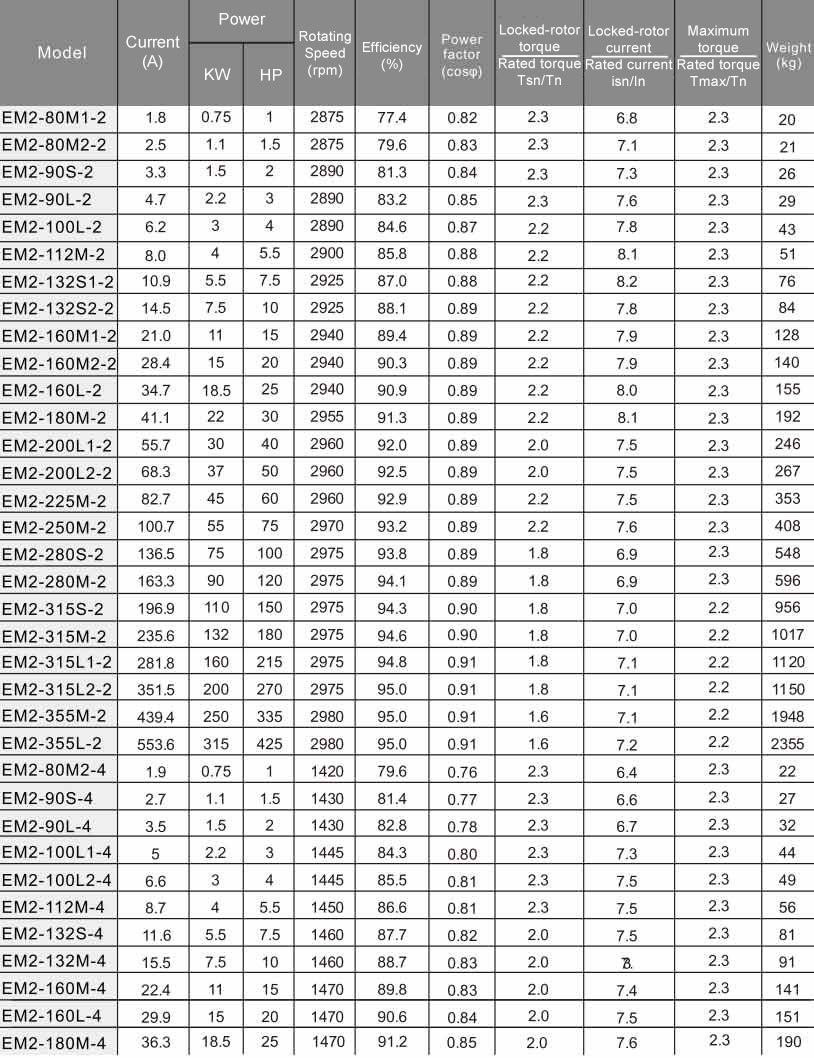

EM2 Product performance data

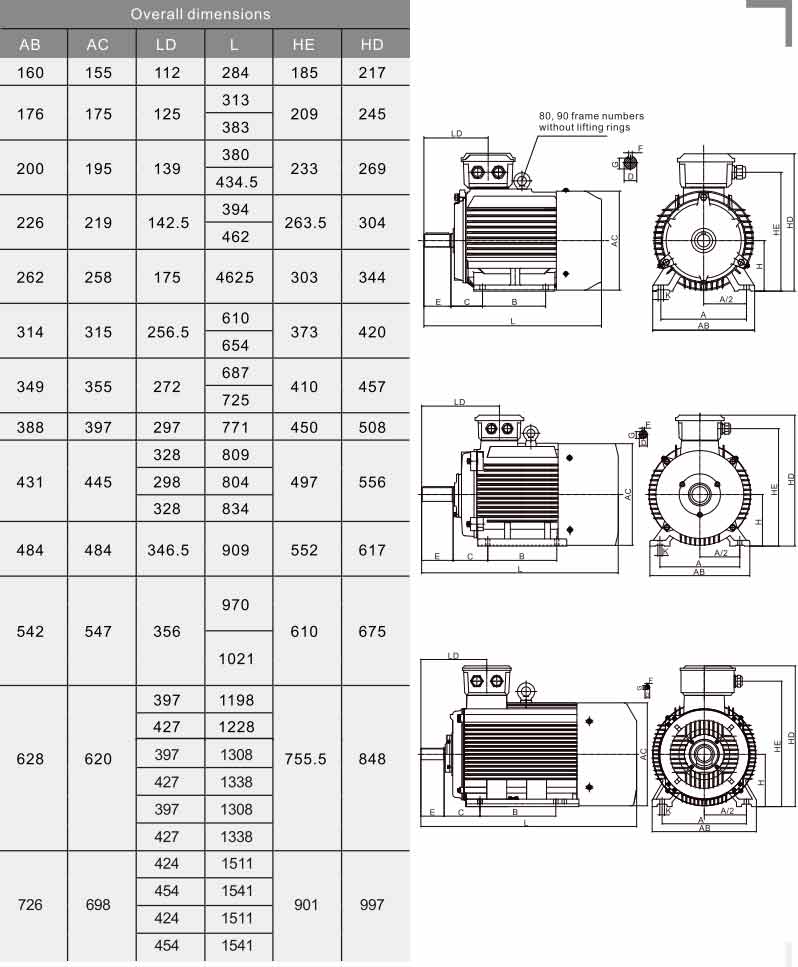

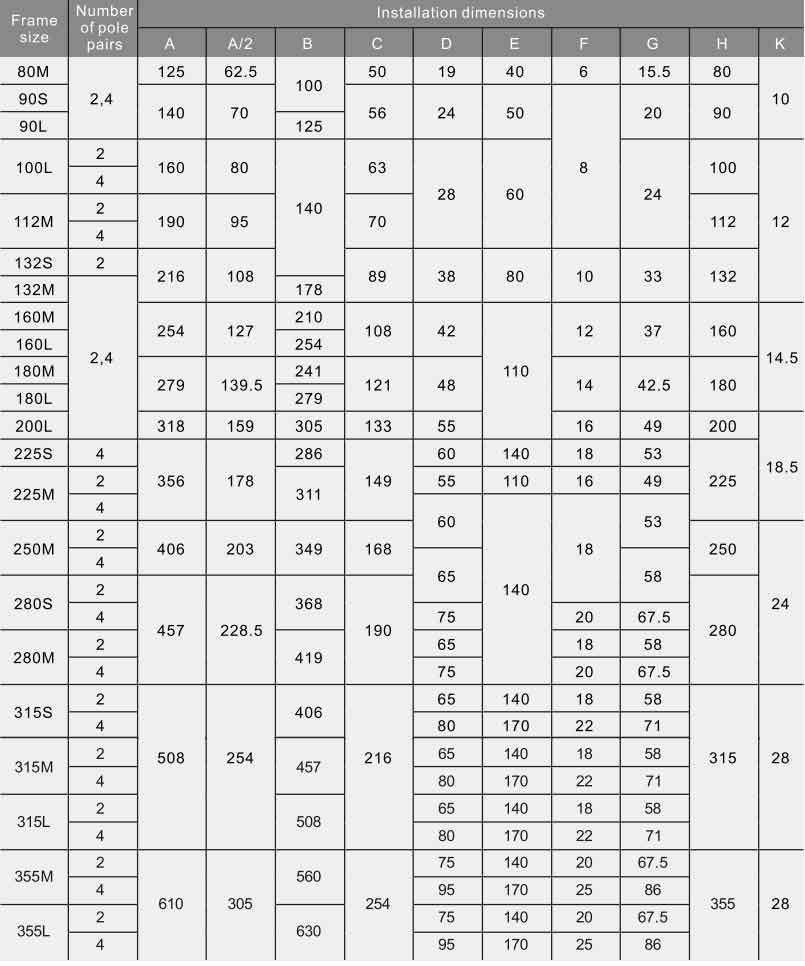

EM2 Outline mounting dimension drawing data(B3)

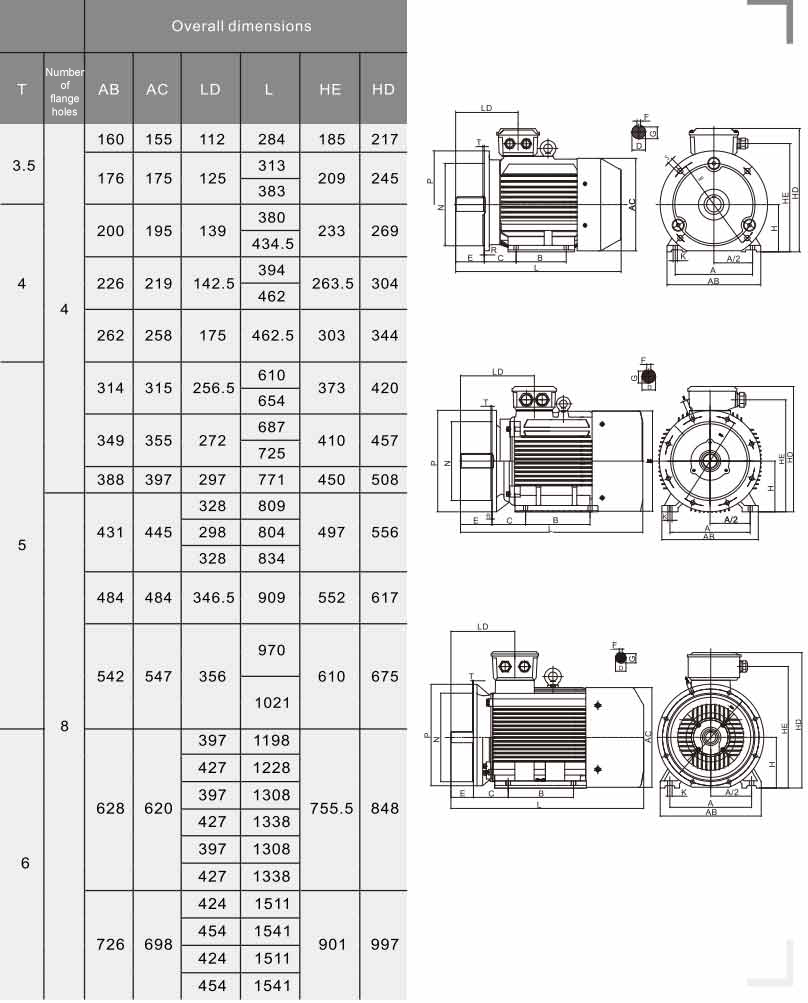

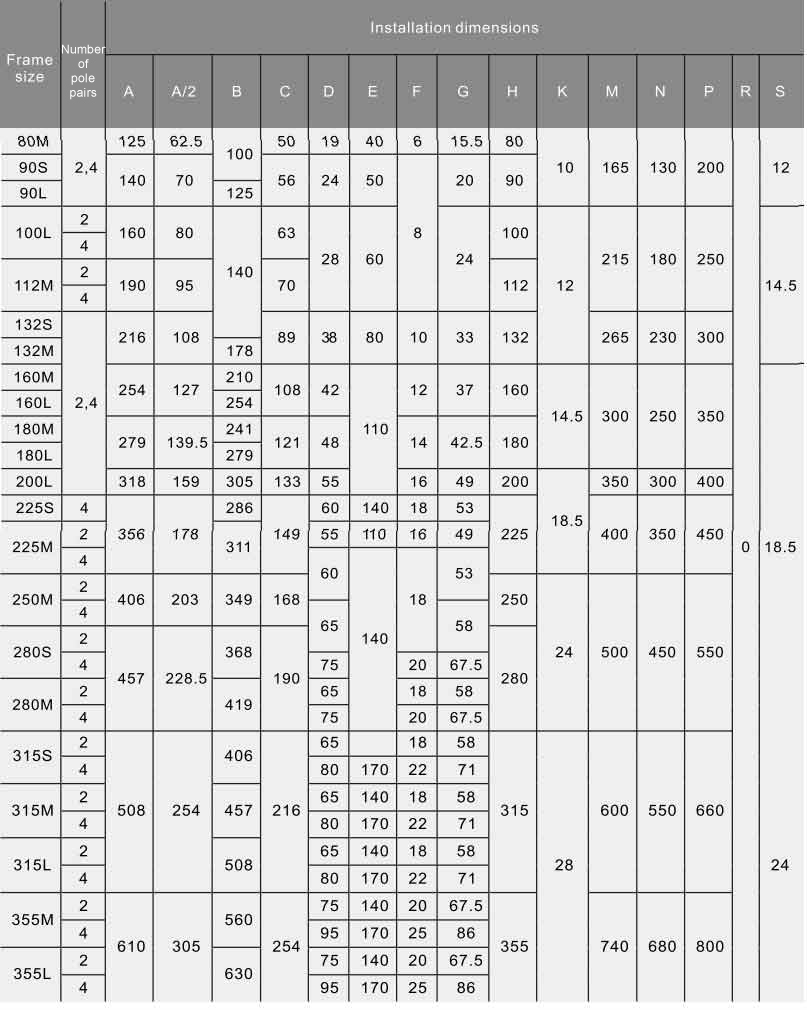

EM2 Outline mounting dimension drawing data(B35)
