DC Braking Module
Professional soft starter and frequency inverter supplier and manufacturer in China
Product Introduction
The function of the braking unit is to divert into a brake resistor the regenerative energy produced in the process of decelerating the motor, converting that energy into heat.Regenerative energy flows form the motor into the inverter DC bus,manifested as increased bus voltage .
Product Application
The equipments make EMI or equipments sensitive to EMI.The equipments impulse circuit or micro processor .SCR Silicon Controlled Rectifier equipments.Variable frequipments,Variable speed ,variable frequency equipments,motor equipments
Product Size
| Voltage | TYPE | "DimensionL*W*H" | "MountingDimensions" | Peak current（A） | "RatedCurrent（A)" | "MinimumresistancesΩ" |
|---|---|---|---|---|---|---|
| AC200V~AC300V | BSK-2015 | 200*86*102.5 | 194*68 | 50 | 15 | 10 |
| BSK-2030 | 200*86*102.5 | 194*68 | 90 | 30 | 6.5 | |
| AC380V~AC460V | BSK-4030 | 200*86*102.5 | 194*68 | 50 | 15 | 20 |
| BSK-4045 | 200*86*102.5 | 194*68 | 75 | 25 | 13.6 | |
| BSK-4110 | 350*150182 | 322*131 | 200 | 70 | 6 | |
| BSK-4220 | 350*150*182 | 322*131 | 300 | 85 | 3 | |
| BSK-4300 | 350*150*182 | 322*131 | 500 | 120 | 2.5 | |
| AC690 | BSK-6220 | 350*150*182 | 322*131 | 300 | 85 | 6 |

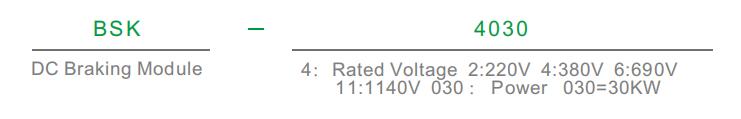

Product Identification Code
|
|
